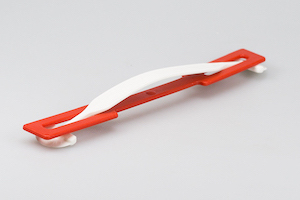

Universal Reinforcing Plate
EKS 991.0

Produktbeschreibung
Product Data
Pic: 991.0.jpg
  • A=172.0 mm
  • G=35.0 mm
  • B=120.0 mm
  • H=5.5 mm
  • C=65.0 mm
  • J=n/a
  • D=19.5 mm
  • K=n/a
  • E=10.0 mm
  • L=n/a
  • F=2.5 mm
  • M=n/a
  • N=n/a
Assembly Data
Pic: 991.0.jpg
  • A=35.0 mm
  • D=120.0 mm
  • B=6.0 mm
  • E=n/a
  • C=1.0 mm
  • F=n/a
  •
  •
  •
  •
  •
  •
  •
  •
