Reinforcing Plate
EKS 882.2

Produktbeschreibung
  • for cardboard boxes with wall thicknesses from 4 – 6 mm
  • stabilizes the cardboard box wall
  • prevents tearing of the package
  • designed to be used in combination with heavy lift handle EKS 882.0

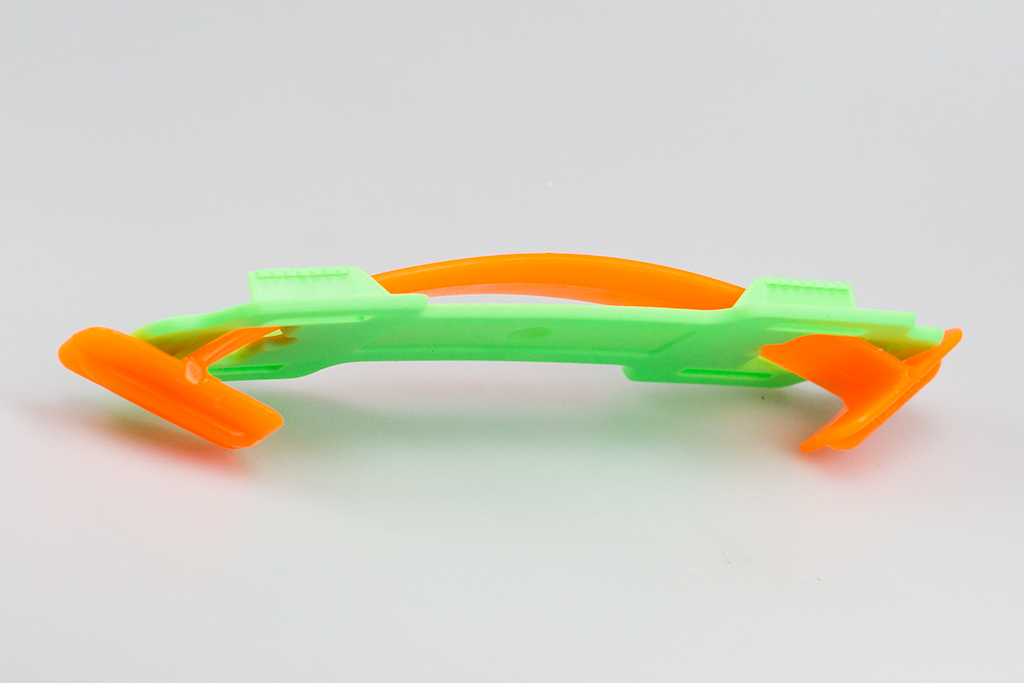

  • available pre-assembled with heavy lift handle EKS 882.0 (EKS 882.3)
  • made of standard material
Product Data
Pic: 882.2.jpg
  • A=164.0 mm
  • G=7.0 mm
  • B=116.0 mm
  • H=1.8 mm
  • C=40.5 mm
  • J=124.0 mm
  • D=26.5 mm
  • K=23.3 mm
  • E=19.0 mm
  • L=21.0 mm
  • F=12.0 mm
  • M=n/a
  • N=n/a
Assembly Data
Pic: 882.2.jpg
  • A=124.0 mm
  • D=n/a
  • B=24.0 mm
  • E=n/a
  • C=1.0 mm
  • F=n/a
  •
  •
  •
  •
  •
  •
  •
  •
