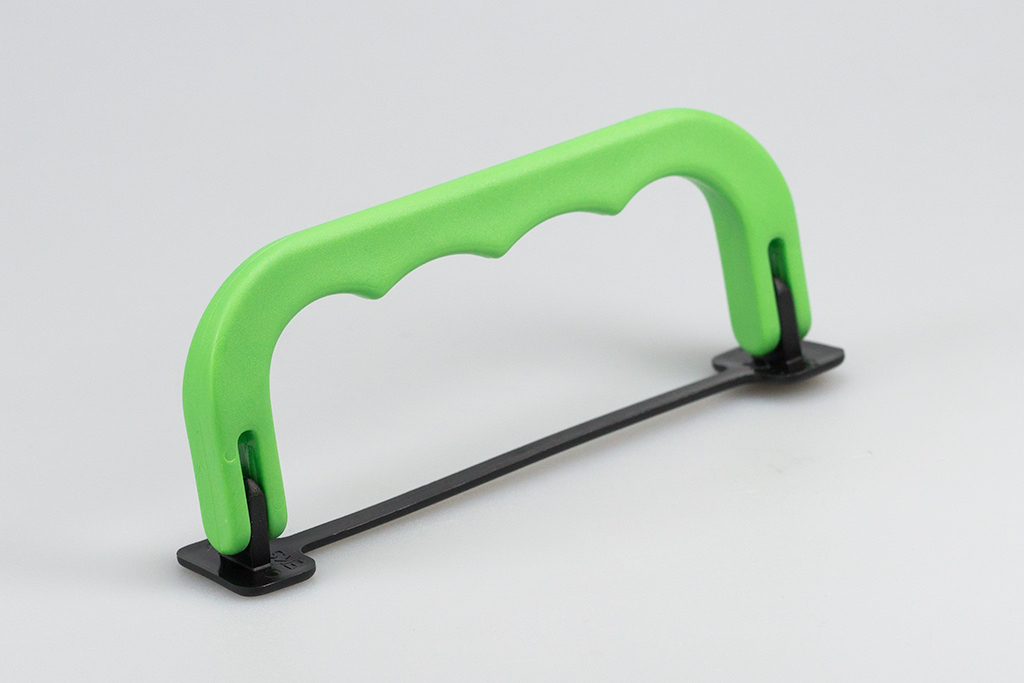

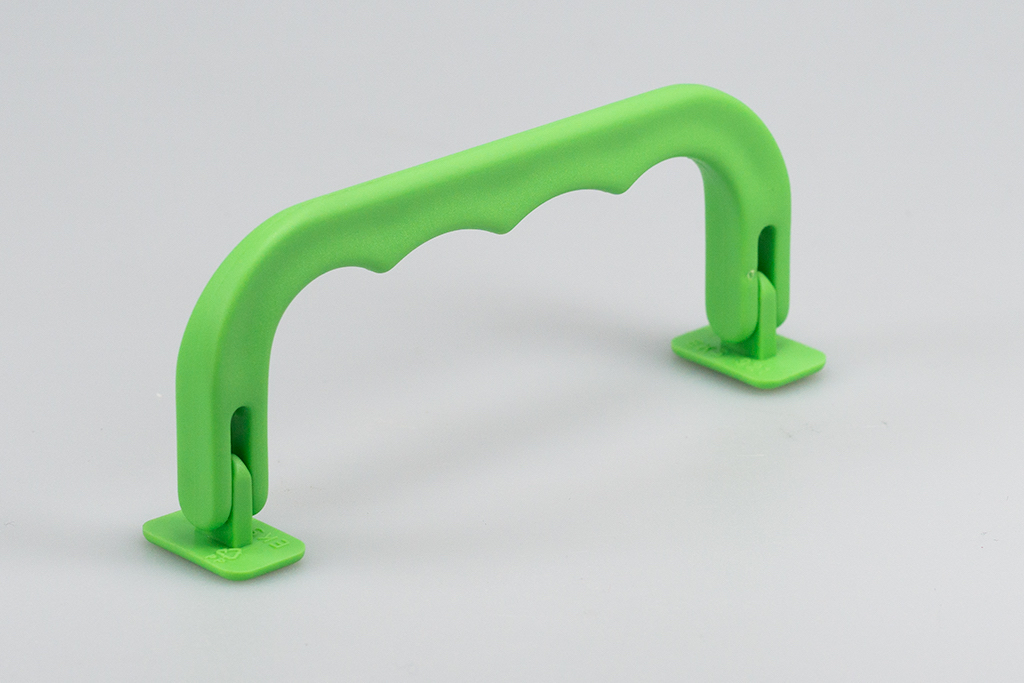

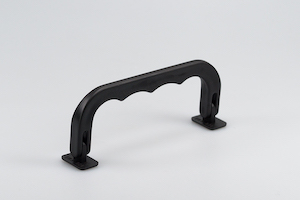

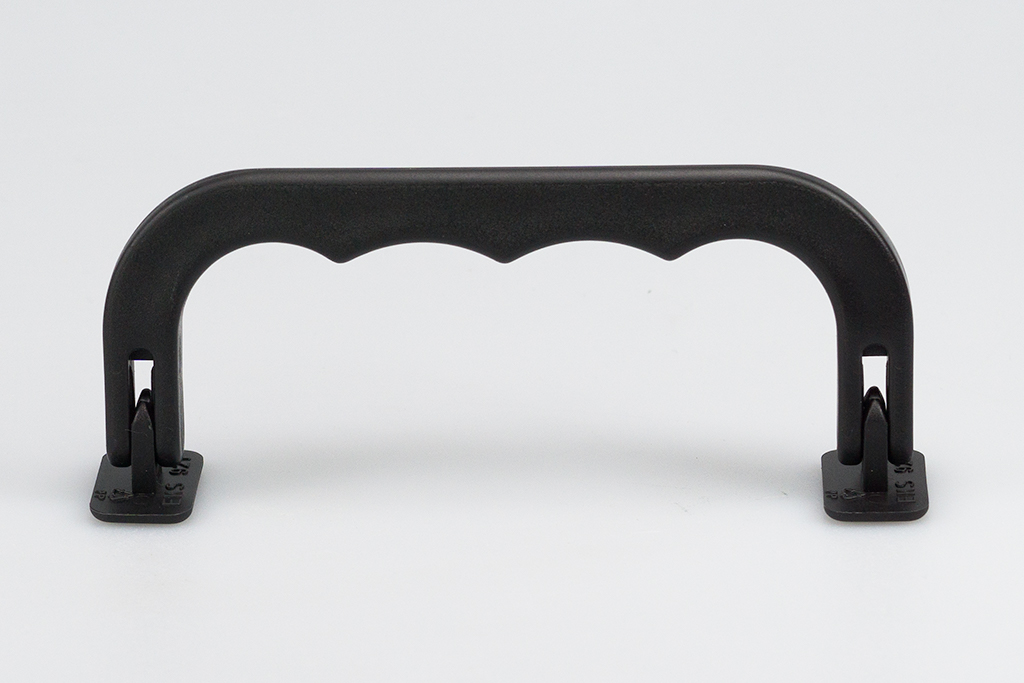

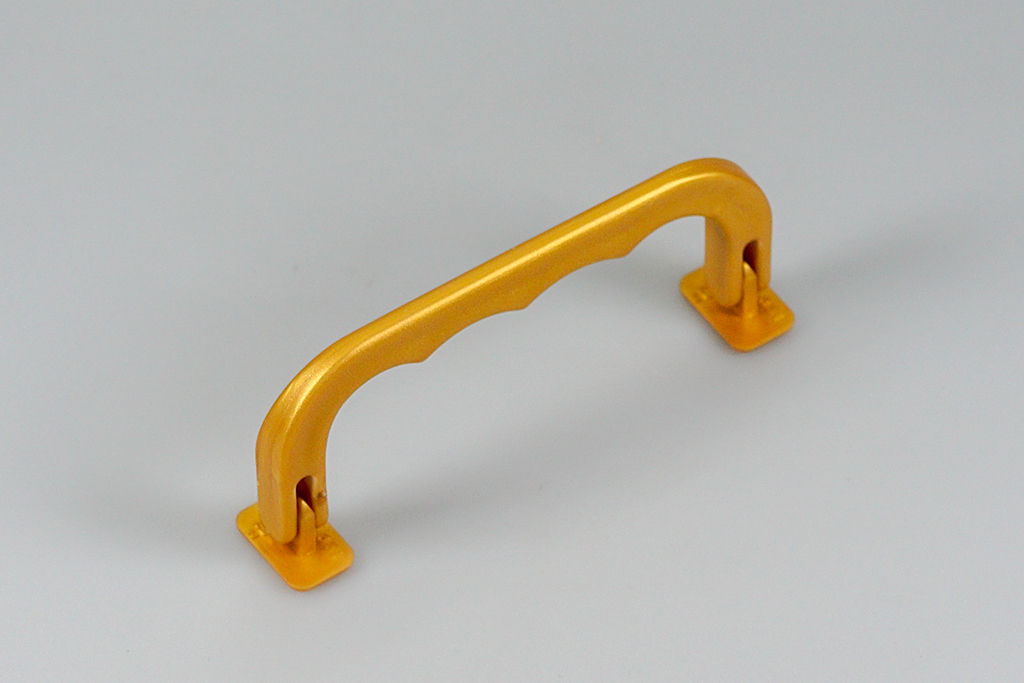

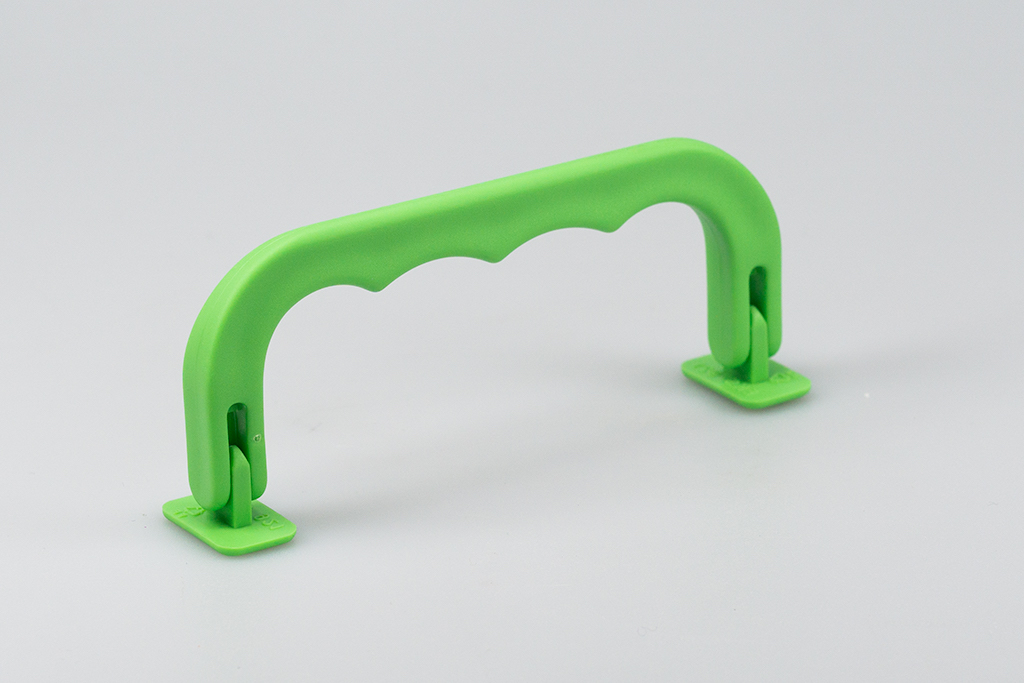

Case Handle
EKS 921.0

Produktbeschreibung
  • appealing design
  • preferably used for presentation packages
  • swivelling handle part
  • high carrying comfort
  • quick assembly because of its snap connection
  • luxury variant of case handle EKS 923.0
  • often used in combination with case lock EKS 922.0
  • made of standard material
  • loadable up to 8 kg
  • also available with lengthwise arranged clamps (EKS 921.1 and EKS 923.1)
Product Data
Pic: 921.0.jpg
  • A=110.0 mm
  • G=15.5 mm
  • B=11.5 mm
  • H=24.5 mm
  • C=3.0 mm
  • J=n/a
  • D=47.0 mm
  • K=n/a
  • E=2.4 mm
  • L=n/a
  • F=126.0 mm
  • M=n/a
  • N=n/a
Assembly Data
Pic: 921.0.jpg
  • A=4.0 mm
  • D=n/a
  • B=10.0 mm
  • E=n/a
  • C=111.0 mm
  • F=n/a
  •
  •
  •
  •
  •
  •
  •
  •
Alternatives:
