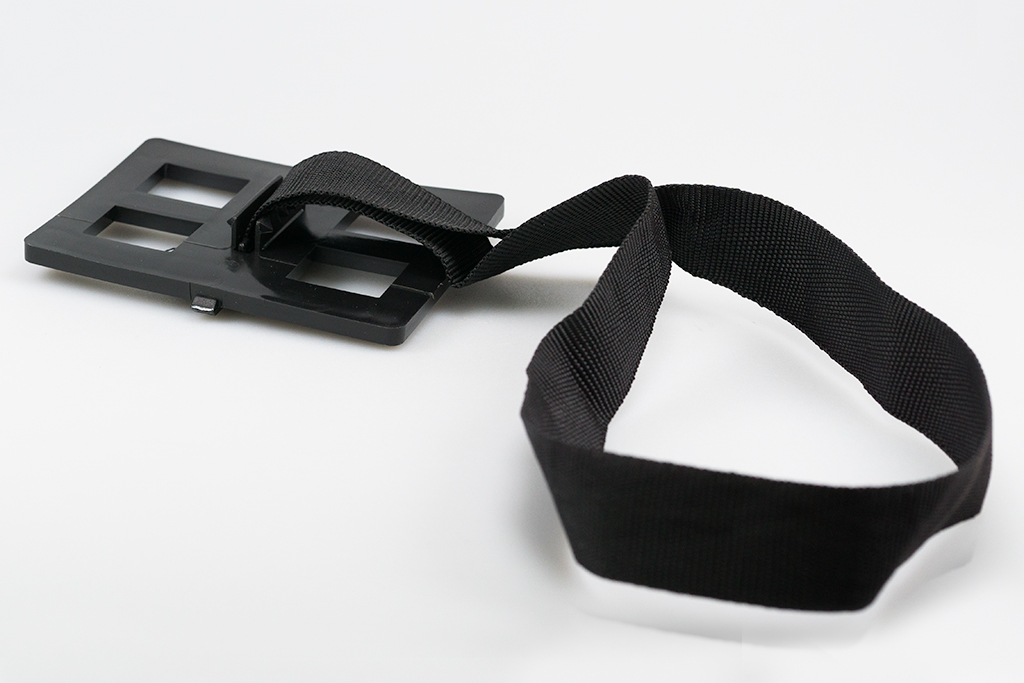

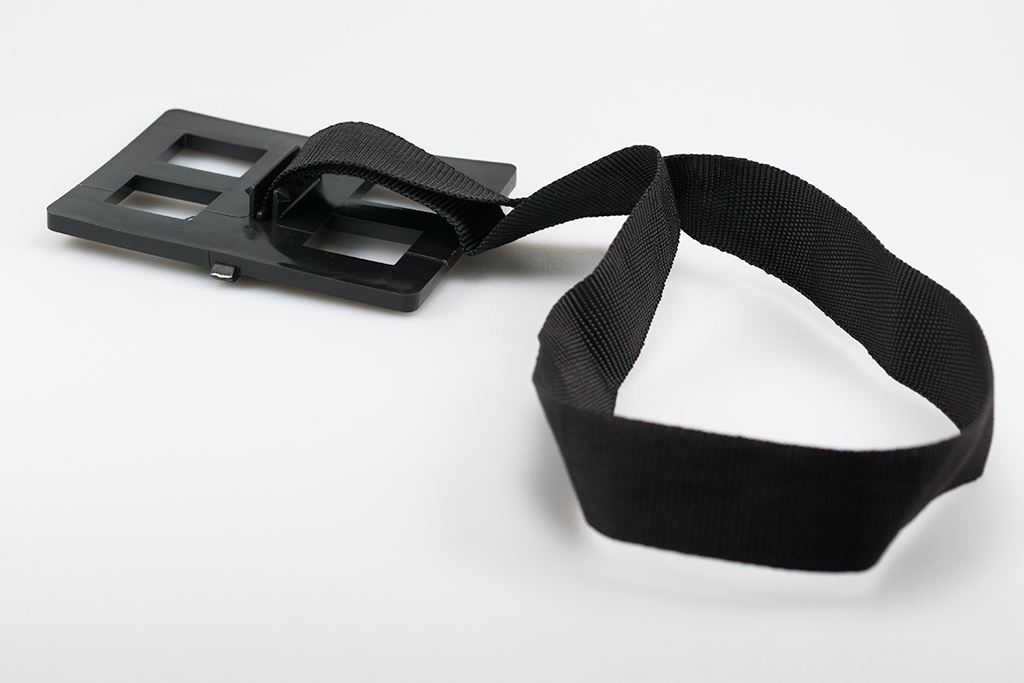

Loop Handle
EKS 885.4

Produktbeschreibung
  • identical with loop handle EKS 885.0
  • difference: loop length is 400 mm
Product Data
  • A=n/a
  • G=400.0 mm
  • B=30.0 mm
  • H=15.3 mm
  • C=114.0 mm
  • J=9.5 mm
  • D=9.5 mm
  • K=n/a
  • E=5.5 mm
  • L=n/a
  • F=5.7 mm
  • M=n/a
  • N=n/a
Assembly Data
  • A=37.0 mm
  • D=n/a
  • B=11.0 mm
  • E=n/a
  • C=1.0 mm
  • F=n/a
  •
  •
  •
  •
  •
  •
  •
  •
