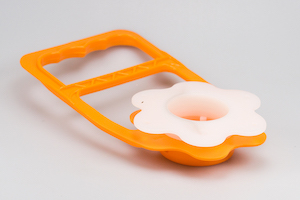

Heavy Duty Handle
EKS 572.4
Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore et dolore magna aliquyam erat
.jpg)
.jpg)
Produktbeschreibung
- for packages with wall thicknesses of 12 – 16 mm
- stabilizes the cardboard wall
- delivered with matching threaded connectors
- can be turned into the ergonomically most favourable handle position
- offers free hand access when observing the recommended punching
- wears out only slightly on the inside
- possesses a longer handle part compared to handle EKS 572.0
- connected with the cardboard box by screwing together both handle parts
- generally assembled on two opposite sides
- made of standard material
- loadable up to 75 kg
Product Data
- A=28.0 mm
- G=85.0 mm
- B=49.0 mm
- H=n/a
- C=18.0 mm
- J=n/a
- D=97.0 mm
- K=n/a
- E=107.0 mm
- L=n/a
- F=140.0 mm
- M=n/a
- N=n/a
Assembly Data
- A=50.0 mm
- D=n/a
- B=85.0 mm
- E=n/a
- C=n/a
- F=n/a
